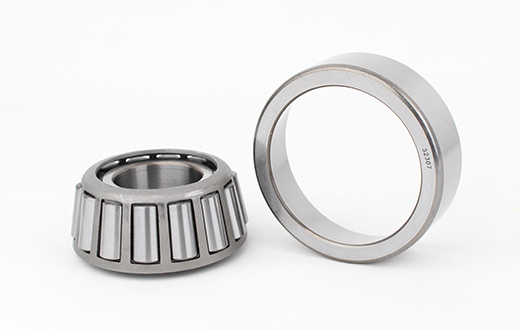

T4DB 160-Tapered roller bearing

Tapered roller bearings are usually of the separated type, that is, the conical inner race assembly composed of the inner race with roller and cage assembly can be installed separately from the conical outer race (outer race). Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries。

Bearing inner diameter

160 mm

Bearing outer diameter

220 mm

Bearing thickness

mm

Contact Us

+86-187 6351 4134

  •
  • Bearing model
  • Model
    T4DB 160
  • Inner diameter-(mm)
  • d
    160
  • Outer diameter-(mm)
  • D
    220
  • Dynamic load-(kN)
  • cr
    242
  • Static load-(kN)
  • cor
    415
  • Fatigue load limit-(kN)
  • Fatigue load limit
    41.5
  • Reference speed-(r/min)
  • Reference speed
    2000
  • Extreme speed -(r/min)
  • Extreme speed
    2800
