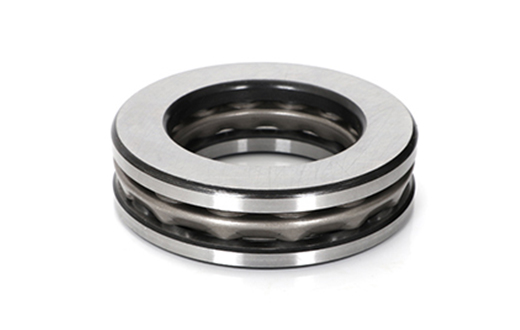

51109 V/HR22T2-Thrust ball bearing
51109 V/HR22T2 Purpose of thrust ball bearing: it is only applicable to the parts bearing one side of axial load and low speed, such as crane hook, vertical water pump, vertical centrifuge, jack, low speed reducer, etc. The shaft ring, seat ring and rolling element of the bearing are separated and can be installed and removed separately。
Bearing inner diameter
45 mm
Bearing outer diameter
65 mm
Bearing thickness
14 mm
Contact Us
+86-187 6351 4134
- Bearing model
-
Model51109 V/HR22T2
- Inner diameter-(mm)
-
d45
- Outer diameter-(mm)
-
D65
- Thickness-(mm)
-
B14
- Dynamic load-(kN)
-
cr1.04
- Static load-(kN)
-
cor0.835
- Extreme speed -(r/min)
-
Extreme speed330
